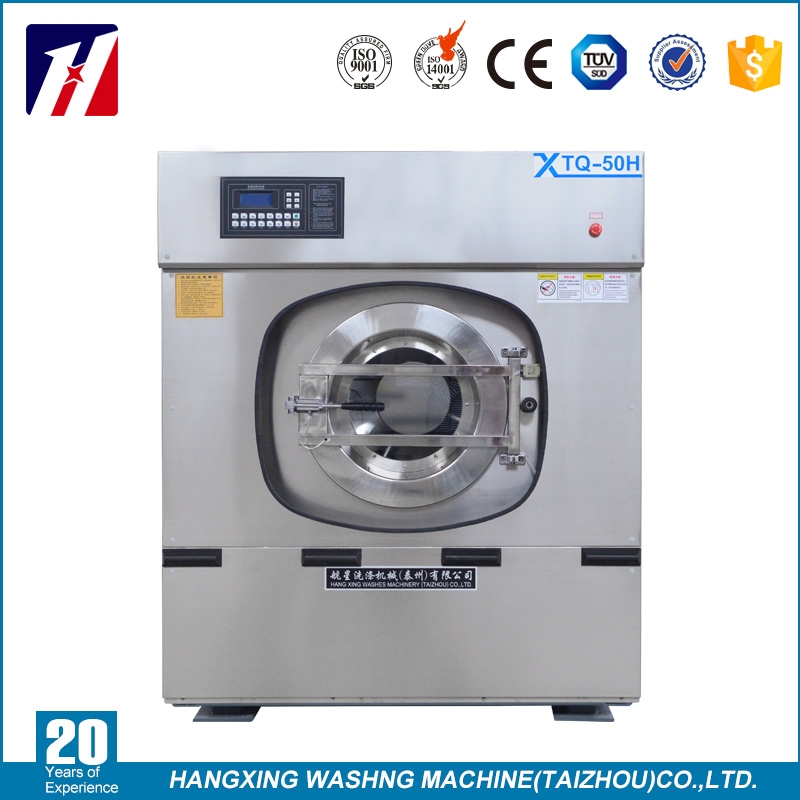

全自动工业洗衣机又称洗脱机、洗脱两用机，是一款集水洗、漂洗、脱水多重功能予一体的全自动工业洗衣机产品，其是目前各洗衣房、水洗厂中应用较多的一款水洗设备,适用于宾馆、饭店、医院、服装厂、洗衣场、工矿企业以及个体洗染行业。用于对各种棉织、毛纺、麻类、化纤、混纺等衣物织品的洗涤。
全自动洗脱机技术参数：
|
型号 type |
xtq-15h |
xtq-20h |
xtq-30h |
xtq-50h |
xtq-70h |
xtq-100h |
|
额定容呈 rated capacity |
15kg |
20kg |
30kg |
50kg |
70kg |
100kg |
|
最小洗涤量 min.capacity |
10kg |
15kg |
20kg |
35kg |
50kg |
70kg |
|
更大洗涤呈 max.capacity |
15kg |
20kg |
30kg |
50kg |
70kg |
100kg |
|
内胆尺寸 drum dimensions |
||||||
|
内胆直径 drum diameter |
700mm |
730mm |
900mm |
970mm |
1080mm |
1200mm |
|
内胆径深 drum depth |
350mm |
380mm |
460mm |
605mm |
750mm |
820mm |
|
体积volume |
135lit. |
159lit. |
292lit. |
540lit. |
687lit. |
927lit. |
|
外形尺寸 overall dimensions |
||||||
|
高 height |
1650mm |
1650mm |
仃 60mm |
1950mm |
1980mm |
2110mm |
|
深 depth |
1100mm |
1200mm |
1520mm |
2060mm |
2080mm |
2150mm |
|
宽 bbbbb |
1020mm |
1150mm |
1300mm |
1600mm |
1700mm |
1760mm |
|
转笼速度 drum speed |
||||||
|
洗涤转速 washing speed |
36r/min |
36r/min |
36r/min |
36r/min |
34r/min |
32r/min |
|
均布转速 unibbbbity speed |
72r/min |
72r/min |
72r/min |
72r/min |
68r/min |
64r/min |
|
中脱 mid speed |
400r/min |
400r/min |
400r/min |
370r/min |
300r/min |
300r/min |
|
高脱 high speed |
800r/min |
800r/min |
800r/min |
750r/min |
670r/min |
670r/min |
|
排水管drain pipe |
||||||
|
排水管drain pipe |
φ76mm |
φ76mm |
φ89mm |
φ114mm |
φ114mm |
φ 114mm |
|
进水管 water inlet |
||||||
|
热水管 hot water pipe |
3/4" (φ)20mm) |
3/4" (φ)20mm) |
3/2 " ( φ40mm) |
3/2 " (φ40mm) |
3/2 " (φ40mm) |
2 " (φ50mm) |
|
冷水管 cold water pipe |
3/4" (φ)20mm) |
3/4" (φ)20mm) |
3/2 " ( φ40mm) |
3/2" (φ40mm) |
3/2 " (φ40mm) |
2 " (φ50mm) |
|
蒸汽管steam pipe |
||||||
|
蒸汽管steam pipe |
1/2 " (φ15mm) |
1/2 " (φ15mm) |
3/4" (φ20mm) |
3/4" (φ20mm) |
1" (φ25mm) |
1" (φ25mm) |
|
每缸耗汽量 steam consumption |
7kg |
8kg |
9 kg |
10kg |
12kg |
13kg |
|
洗涤耗水量 water consumption |
350kg |
400kg |
550kg |
1000kg |
1300kg |
1650kg |
|
电源 power supply |
||||||
|
电源 power supply |
standard:380 n-3ph-50hz 三相四线 |
|||||
|
电机功率motor power |
1.5kw |
2.2kw |
3.0kw |
4.0kw |
5.5kw |
7.5kw |
|
电加热功率 electric heating power |
10kw |
15kw |
20kw |
30kw |
45kw |
60kw |
|
机器重虽 machine weight |
||||||
|
重量 afeight |
950kg |
1200kg |
1900kg |
2600kg |
2800kg |
3600kg |
|
洗涤方式 washing bbbbbb |
洗涤、均布、中脱、高脱转速根据需要由变频器设定 washing speed,unibbbb speed,middle speed and high speed are set by frequency converter according to the need. |
|||||
注：以上参数仅供参考，实际参数会随着产品的改进而有细小的出入。
