hawke铠装防爆格兰（501/453/rac系列）招商信息-凯发app平台官网
hawke代理商：上海颐品自动化科技有限公司
hazardous area cable glands from

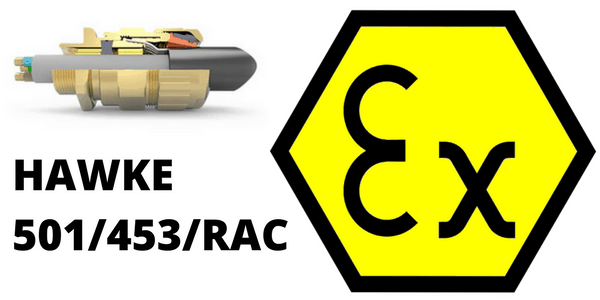

hawke 501/453/rac cable glands are suitable for use with single wire armour ‘w’, wire braid ‘x’ and steel tape armour ‘z’ elastomer and plastic insulated cables.
hawke 501/453/rac cable glands are dual certified exd and exe and suitable for installation in zone 1, zone 2, zone 21, zone 22 and in gas groups iia, iib and iic, 3.2-91.6mm outside cable diameters.
when used in increased safety applications the hawke cable gland can be used to terminate braided cables where the braid and the cable outer sheath enter into the electrical enclosure or junction box.
♦ exdb iic gb, exeb iic gb, extb iiic, db aromoured cables atex & iecex cable gland.
hawke 501/453/rac cable gland is suitable for cable termination and installation in zone 1 (21), zone 2 (22) and division 2 hazardous areas.
hawke 501/453/rac cable gland technical specification
cable gland selection table for hawke 501/453/rac
| hawke size ref. | entry thread size |
thread length ‘h’ |
cable acceptance details | ‘g’ compressed length | hexagon dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inner sheath ‘a’ | outer sheath ‘b’ | ‘c’ armour/braid | |||||||||||||
| standard seal | alternative seal (s) | ||||||||||||||
| metric | npt * | ||||||||||||||
| standard | option | min. | max. | min. | max. | min. | max. |
orien tation 1 |
orien tation 2 |
across flats | across corners | ||||
| os | m20 ‡ | ½” | – | 15 | 3.0 | 8.0 | – | – | 5.5 | 12.0 | 0.8 / 1.25 | 0 / 0.8 | 52.0 | 24.0 | 26.5 |
| o | m20 ‡ | ½” | – | 15 | 6.5 | 11.9 | – | – | 9.5 | 16.0 | 0.8 / 1.25 | 0 / 0.8 | 52.0 | 24.0 | 26.5 |
| a | m20 | ¾” | ½” | 15 | 10.0 | 14.3 | 9.0 | 13.4 | 12.5 | 20.5 | 0.8 / 1.25 | 0 / 0.8 | 53.0 | 30.0 | 32.5 |
| b | m25 | 1″ | ¾” | 15 | 13.0 | 20.2 | 9.5 | 15.4 | 16.9 | 26.0 | 1.25 / 1.6 | 0 / 0.7 | 59.5 | 36.0 | 39.5 |
| c | m32 | 1¼” | 1″ | 15 | 19.5 | 26.5 | 15.5 | 21.2 | 22.0 | 33.0 | 1.6 / 2.0 | 0 / 0.7 | 64.0 | 46.0 | 50.5 |
| c2 | m40 | 1½” | 1¼” | 15 | 25.0 | 32.5 | 22.0 | 28.0 | 28.0 | 41.0 | 1.6 / 2.0 | 0 / 0.7 | 68.3 | 55.0 | 60.6 |
| d | m50 | 2″ | 1½” | 15 | 31.5 | 44.4/42.3 † | 27.5 | 34.8 | 36.0 | 52.6 | 1.8 / 2.5 | 0 / 1.0 | 79.0 | 65.0 | 70.8 |
| e | m63 | 2½” | 2″ | 15 | 42.5 | 56.3/54.3 † | 39.0 | 46.5 | 46.0 | 65.3 | 1.8 / 2.5 | 0 / 1.0 | 78.4 | 80.0 | 88.0 |
| f | m75 | 3″ | 2½” | 15 | 54.5 | 68.2/65.3 † | 49.5 | 58.3 | 57.0 | 78.0 | 1.8 / 2.5 | 0 / 1.0 | 83.7 | 95.0 | 104.0 |
| g | m80 | 3½” | – | 20 | 67.0 | 73.0 | – | – | 75.0 | 89.5 | 2.0 / 3.5 | 0 / 1.0 | 95.6 | 106.4 | 115.0 |
| h | m90 | 3½” | – | 20 | 67.0 | 77.6 | – | – | 75.0 | 89.5 | 2.0 / 3.5 | 0 / 1.0 | 95.6 | 115.0 | 130.0 |
| j | m100 | 4″ | – | 20 | 77.0 | 91.6 | – | – | 88.0 | 104.5 | 2.5 / 4.0 | 0 / 1.0 | 95.6 | 127.0 | 142.0 |
all dimensions in millimetres (except*).
os – f size metric entry threads are 1.5mm pitch as standard. for g size cable glands and above, a 2mm pitch is supplied as standard (1.5mm pitch with 15mm length of thread can be supplied) please specify when ordering.
† smaller value is applicable when selecting reduced npt entry option.
sizes os and o are available with an m16 thread size. for o size with an m16 thread, the maximum cable inner sheath diameter is 10.9mm.
➡ available to crimp and terminate cable conductors to ensure complete termination of cable.

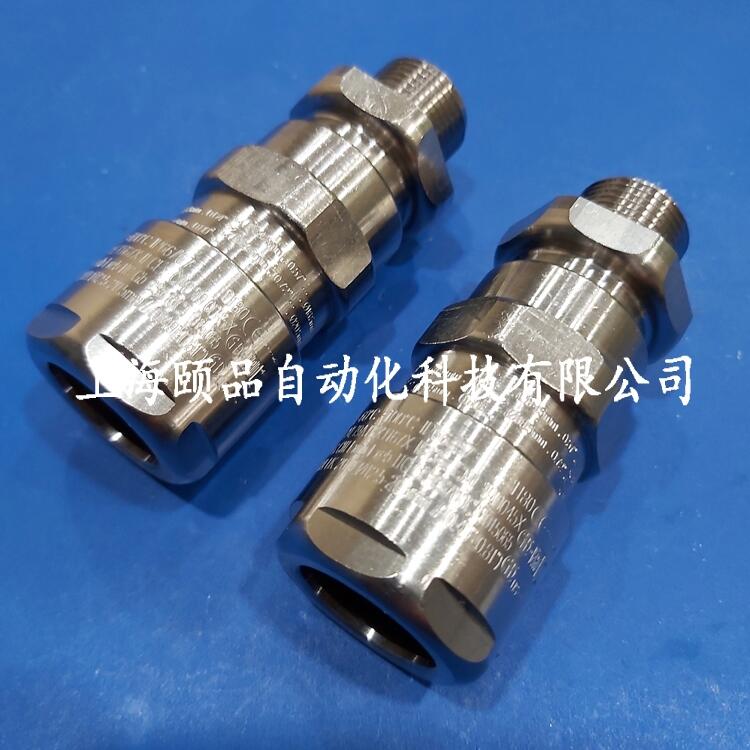

cable gland material & finish
hawke 501/453/rac cable glands are manufactured in brass (standard), nickel plated brass, 316 stainless steel or aluminium. brass npt entries are nickel plated as standard.

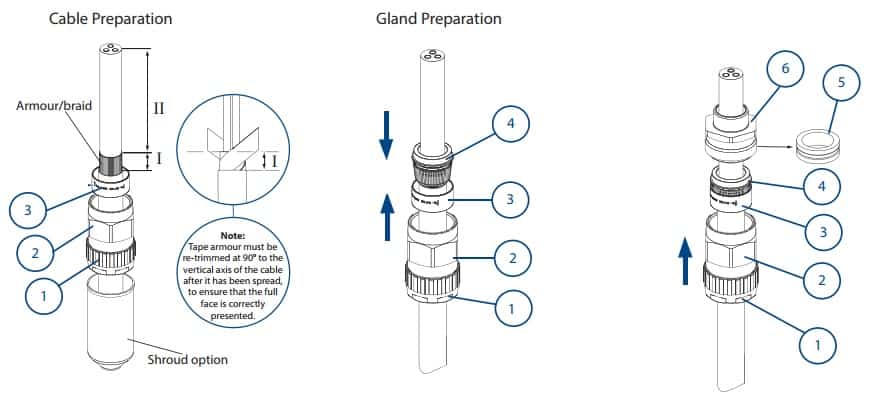

preparing cable & gland for installing hawke 501/453/rac
cable preparation
strip cable to suit equipment as shown above and expose the armour/braid ‘i’.
‘i’ = 20mm for cable gland sizes os to c ‘i’ = 25mm for cable gland sizes c2 to f ‘ii’ = to suit equipment. if required, fit shroud.
cable gland preparation
push the cable through the armour spigot (4). spread armour/braid over the armour spigot (4) until the end of the armour/braid is up against the shoulder of the armour cone. position the armour clamping ring (3).
remove the inner seal (5) from the entry (6). place the entry (6) over the armour spigot (4). move the sub-assembly (1) and (2) up to meet the entry (6). note: if the equipment has a threaded entry, it may be advisable to screw the entry component into the equipment to prevent twisting of the cable after step d
➡ click to view the complete range of hazardous area glands certified according to atex & iecex for zone 1 / zone 2.
flameproof exdb and increased safety exeb (dust extb) dual certified glands from hawke include – for further inbation review the product pages or contact us to discuss your requirements.
